Printing Equipment

Professional Printing Machines Manufactured By Dongling Technology

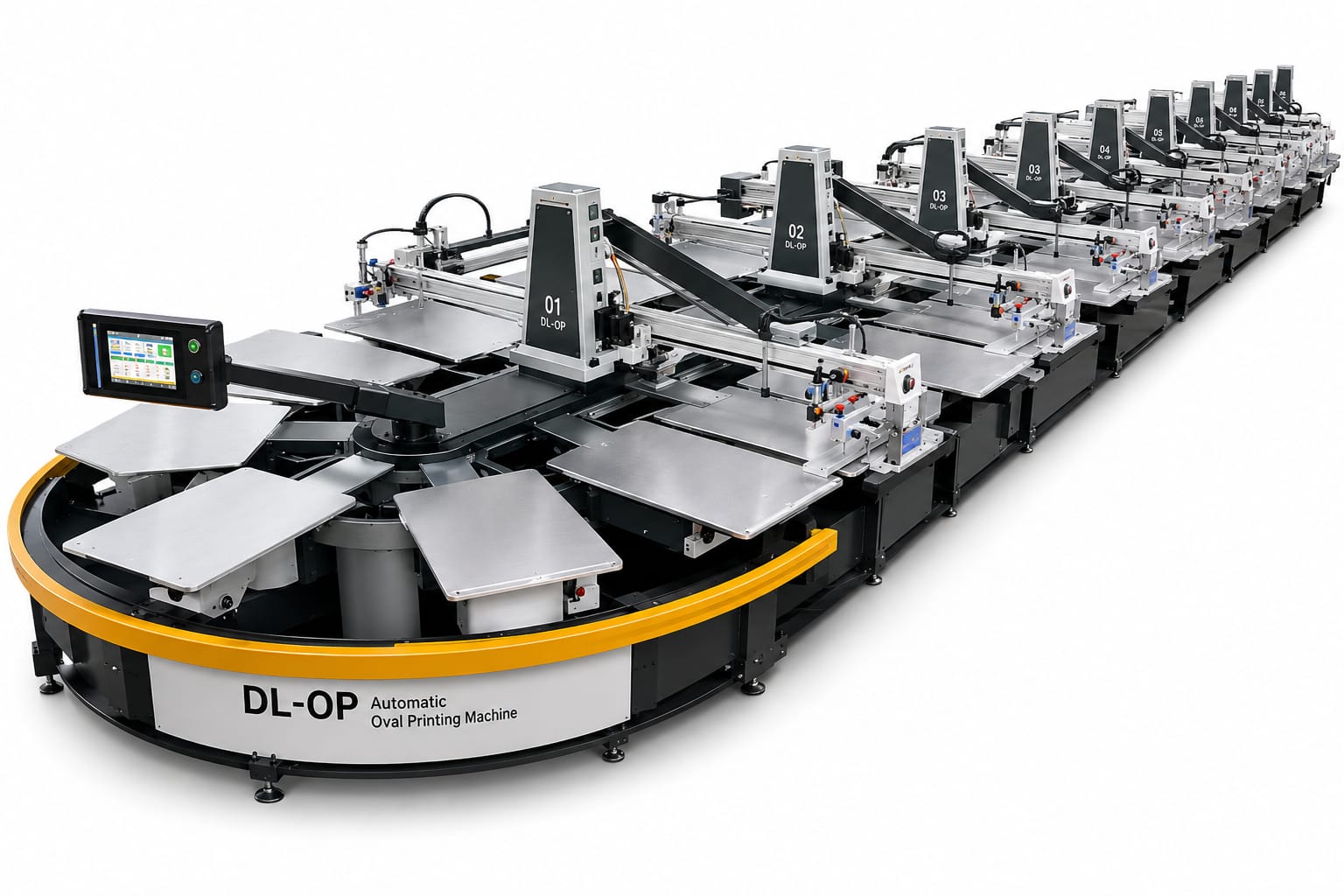

Garment Automatic Oval Printing Machine

Garment Automatic Oval Printing Machine

Machine Model Number of Color Printing Sets Palette Siza Number of Platters
TL-6-OL 6 W: 40–100 cm
L: 60–150 cm		 24
TL-8-OL 8 W: 40–100 cm
L: 60–150 cm		 30
TL-10-OL 10 W: 40–100 cm
L: 60–150 cm		 36
TL-12-OL 12 W: 40–100 cm
L: 60–150 cm		 42
TL-14-OL 14 W: 40–100 cm
L: 60–150 cm		 48
TL-16-OL 16 W: 40–100 cm
L: 60–150 cm		 54
TL-18-OL 18 W: 40–100 cm
L: 60–150 cm		 60
TL-20-OL 20 W: 40–100 cm
L: 60–150 cm		 66
TL-22-OL 22 W: 40–100 cm
L: 60–150 cm		 72
TL-24-OL 24 W: 40–100 cm
L: 60–150 cm		 78
TL-26-OL 26 W: 40–100 cm
L: 60–150 cm		 84
TL-28-OL 28 W: 40–100 cm
L: 60–150 cm		 90
Tianjin Dilang

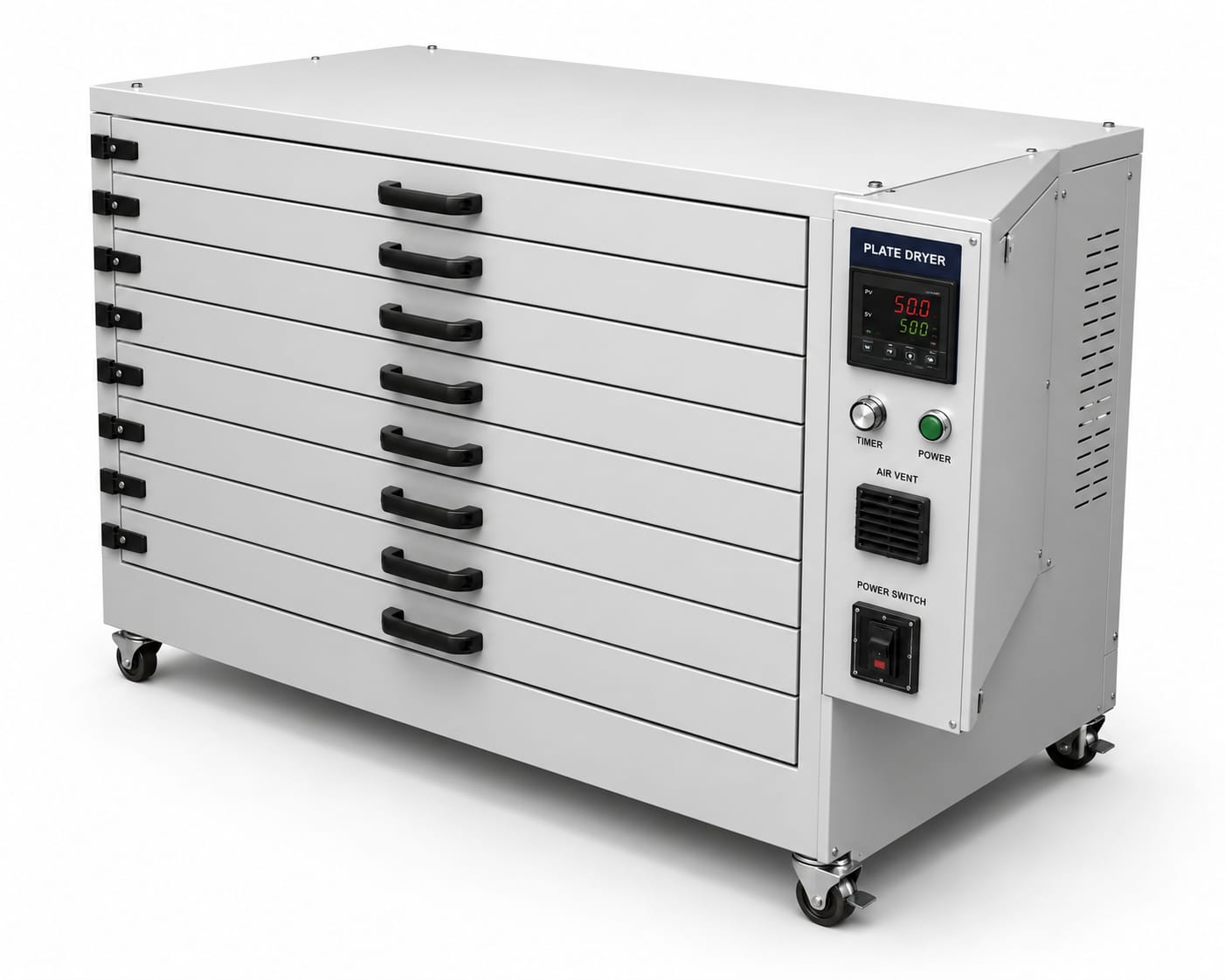

Plate Dryer

Machine Model Temperature Control Range Temperature Control Accuracy Timing Range Rated Power Number of Screens Dried Simultaneously Voltage Specification Single Screen Size Applicable
HB-500 40-150℃ ±2℃ 0-99 Minutes
Adjustable		 1.5KW 5 Block 220V/50HZ 60×80cm
HB-800 40-160℃ ±1.5℃ 0-120 Minutes
Adjustable		 2.5KW 7 Block 380V/50HZ 80×100cm
HB-1000 40-170℃ ±1℃ 0-180 Minutes
Adjustable		 3.0KW 8 Block 380V/50HZ 100×120cm

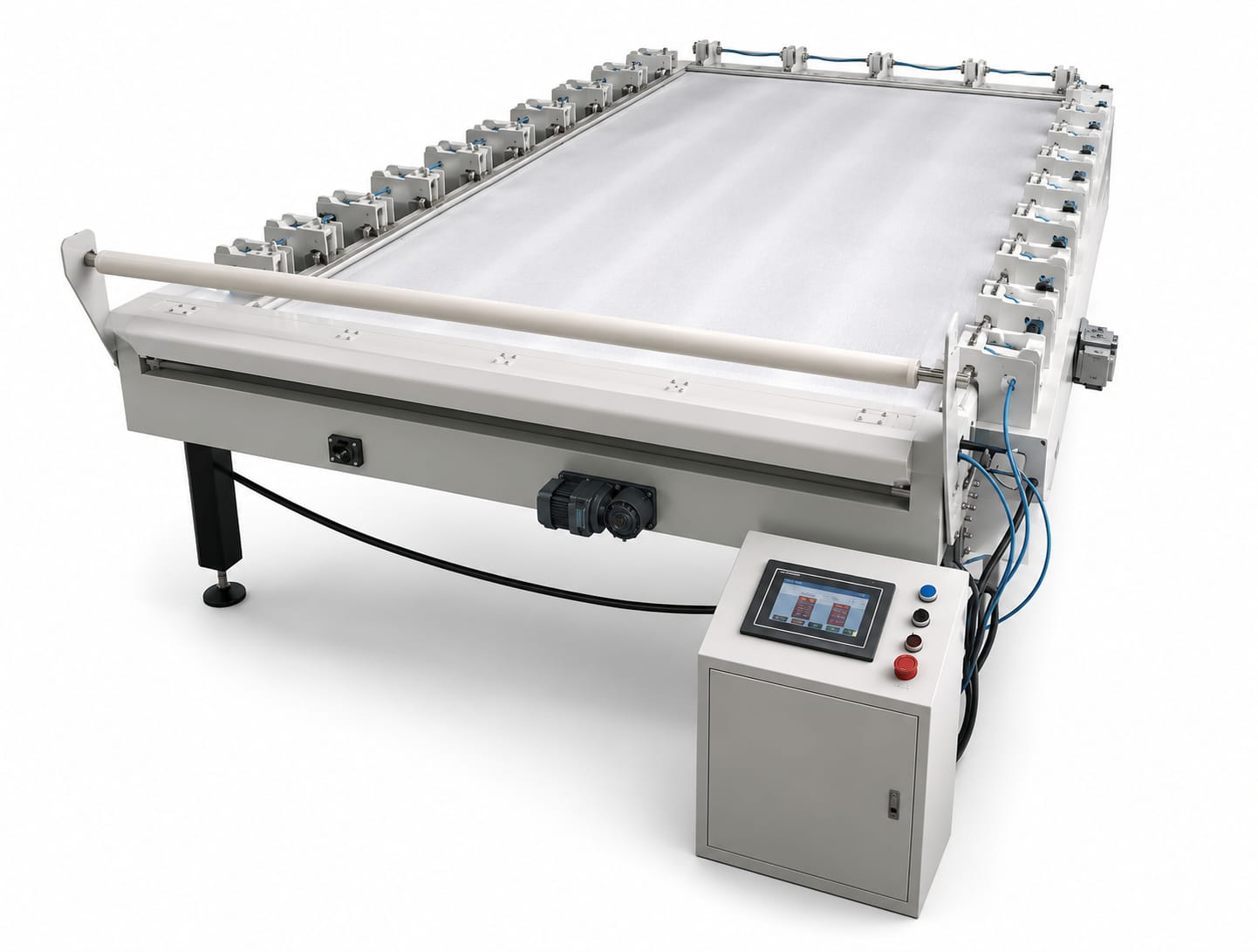

AUTOMATIC INTELLIGENT MESH STRETCHING MACHINE

AUTOMATIC INTELLIGENT
MESH STRETCHING MACHINE

Model Spec Form Factor Effective Area Voltage Power
DL-BW2000 165cm × 200cm 200cm × 290cm 150cm × 190cm 220V/50HZ 2KW
DL-BW3000 165cm × 300cm 200cm × 390cm 150cm × 290cm 220V/50HZ 2KW

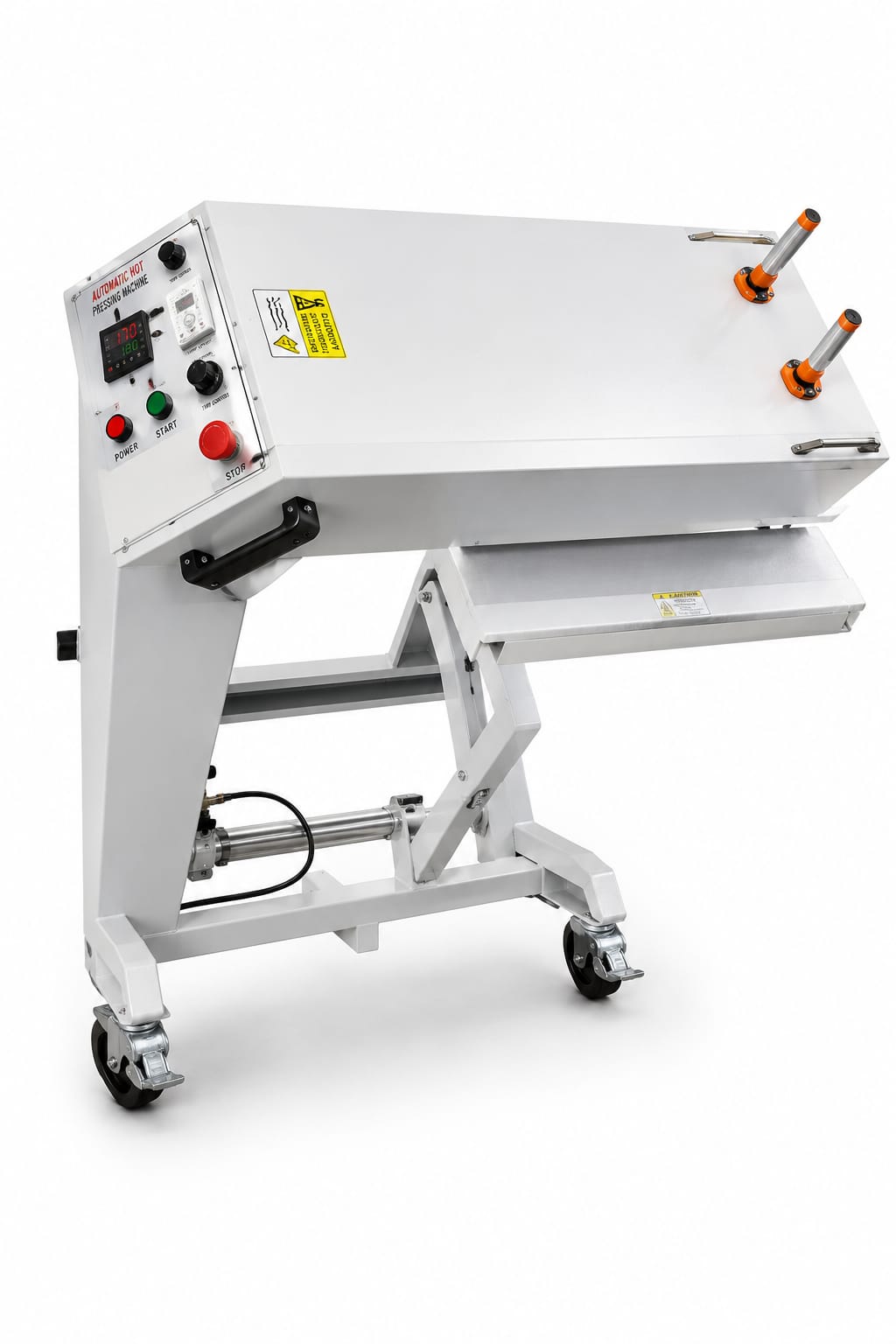

HEAT PRESS MACHINE

Automatic Hot Pressing Machine

1. Constant temperature automatic hot pressing

2. Linked automatic start/stop with oval printing machine

3. Flexible adaptation for different craft processes

4. Labor-saving with supporting equipment

5. Double cylinder lifting for stable performance

6. Independent protection board function

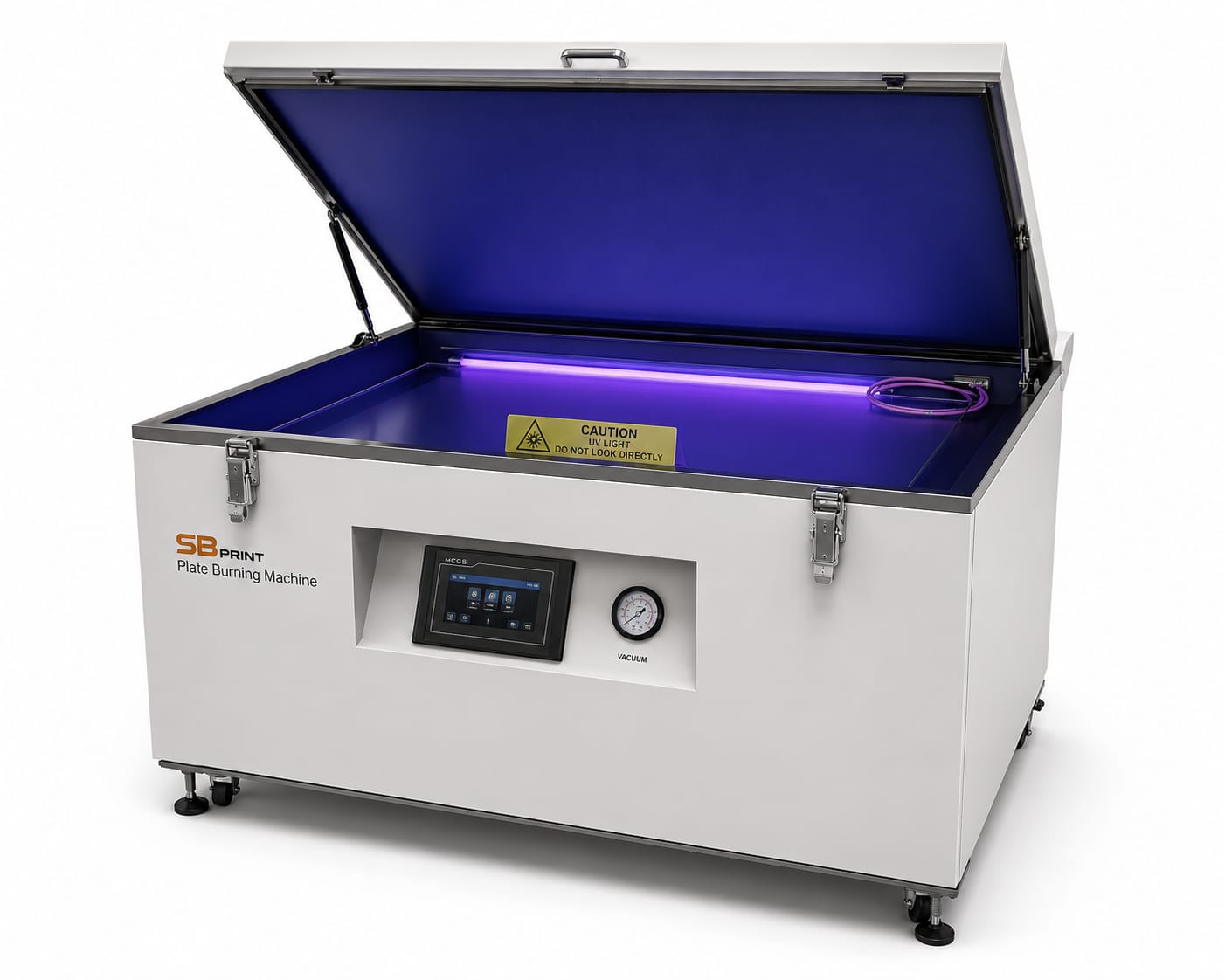

PLATE BURNING MACHINE

PLATE BURNING
MACHINE

Machine Model Voltage Specification Vacuum System Parameters Light Source Type Wavelength Range Exposure Time Range Maximum Applicable Screen Size Rated Power
SB-800 380V/50HZ Reach a vacuum pressure of 85 kPa within 60 seconds Parallel ultraviolet light source 350-450nm Adjustable from 0 to 180 seconds 80×100cm 2.0KW
SB-1000 380V/50HZ Reach a vacuum pressure of 90 kPa within 55 seconds High-power iodine-gallium lamp 350-450nm Adjustable from 0 to 240 seconds 100×120cm 2.5KW
SUPPORTING EQUIPMENT DISPLAY

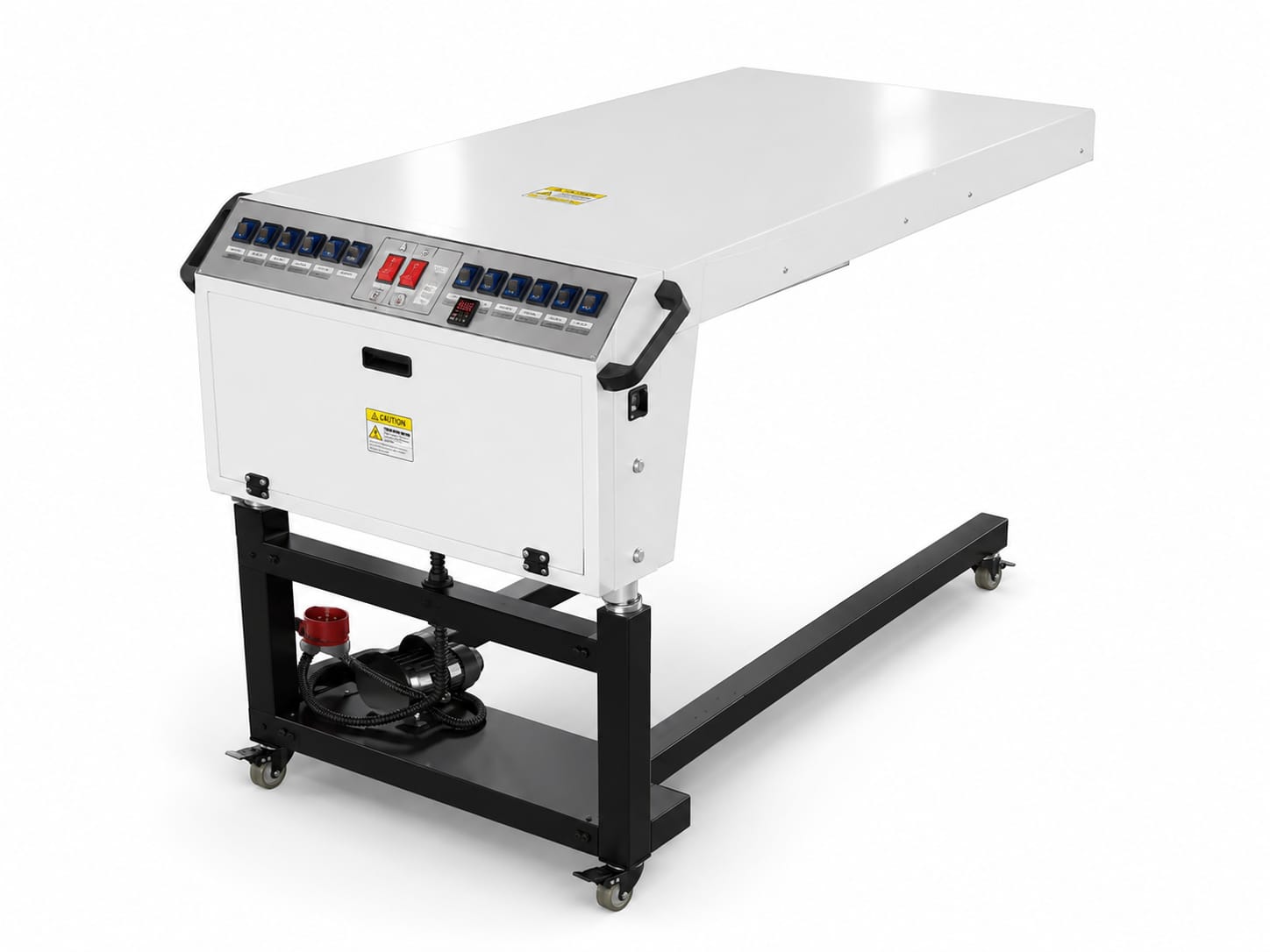

Energy-Saving
Dryer

Machine Parameter Item: 60×75 Item: 80×120
Thermal Heating Element Infrared carbon fiber Infrared carbon fiber
Voltage (VAC) 380V
(Three-phase five-wire system)		 380V
(Three-phase five-wire system)
Maximum Power 12KW 19.2KW
Lamp Tube Specification U-shaped light tube 280mm U-shaped light tube 380mm
Plug Specification 32A / 380V
(5-core)		 32A / 380V
(5-core)
Control & Function 1. 1-9 gear adjustable power
2. Independent switch for each tube
3. Manual/automatic integrated operation 		1. 1-9 gear adjustable power
2. Independent switch for each tube
3. Manual/automatic integrated operation
Maximum Drying Area 65×80cm 75×110cm

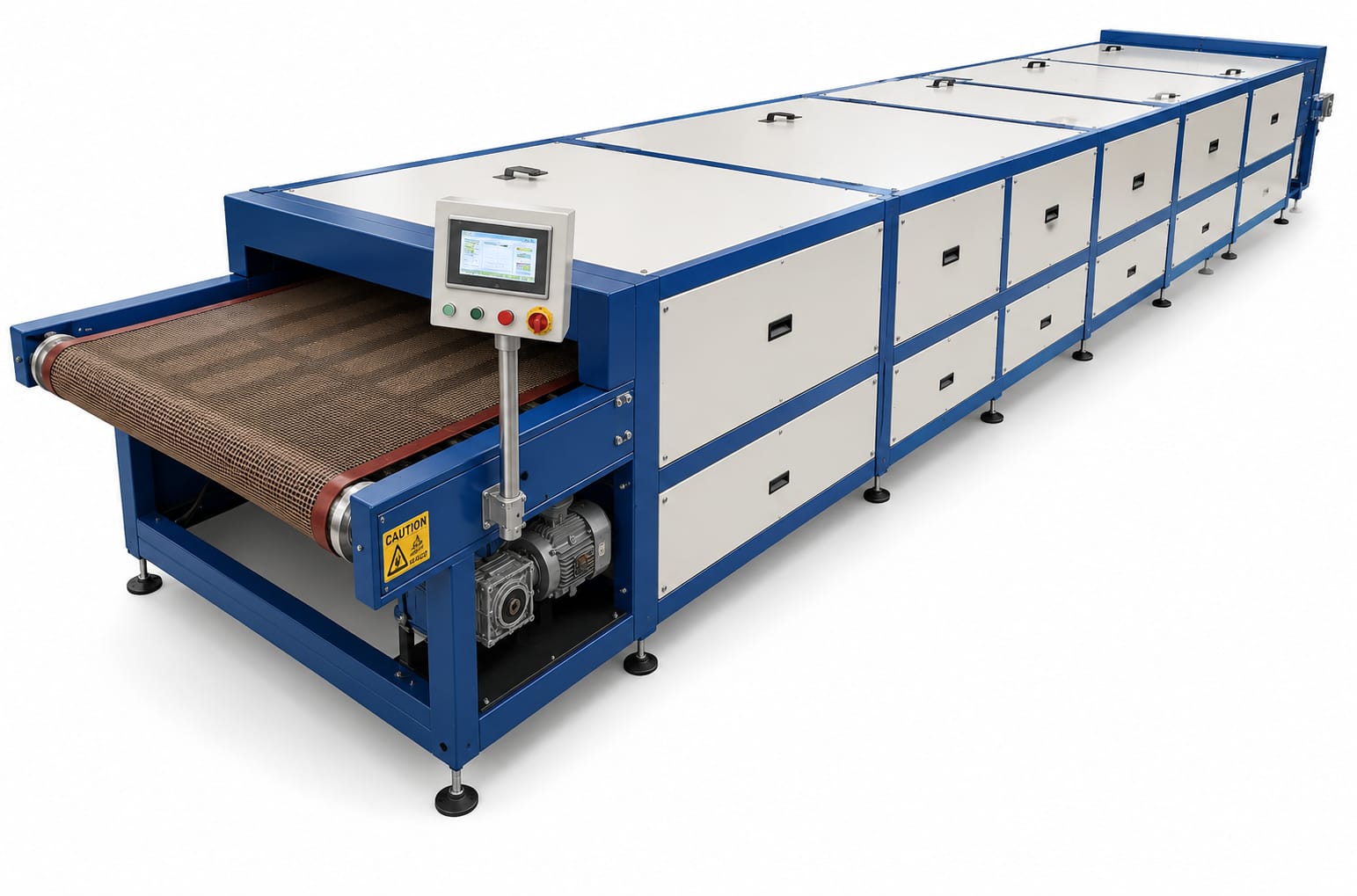

TUNNEL DRYER

TUNNEL DRYER

Machine Model Voltage Specification Rated Power Lamp Specification Maximum Drying Width Temperature Control Range Conveyor Belt Speed Control Gears
DLH6-100 380V 46KW U-shaped 90cm 40–200°C Adjustable 0.5–8m/min Adjustable Adjustable from 1st to 9th gear
DLH6-135 380V 19.2KW U-shaped 120cm 40–200°C Adjustable 0.5–8m/min Adjustable Adjustable from 1st to 9th gear
DLH6-170 380V 25KW U-shaped 155cm 40–220°C Adjustable 0.5–8m/min Adjustable Adjustable from 1st to 9th gear

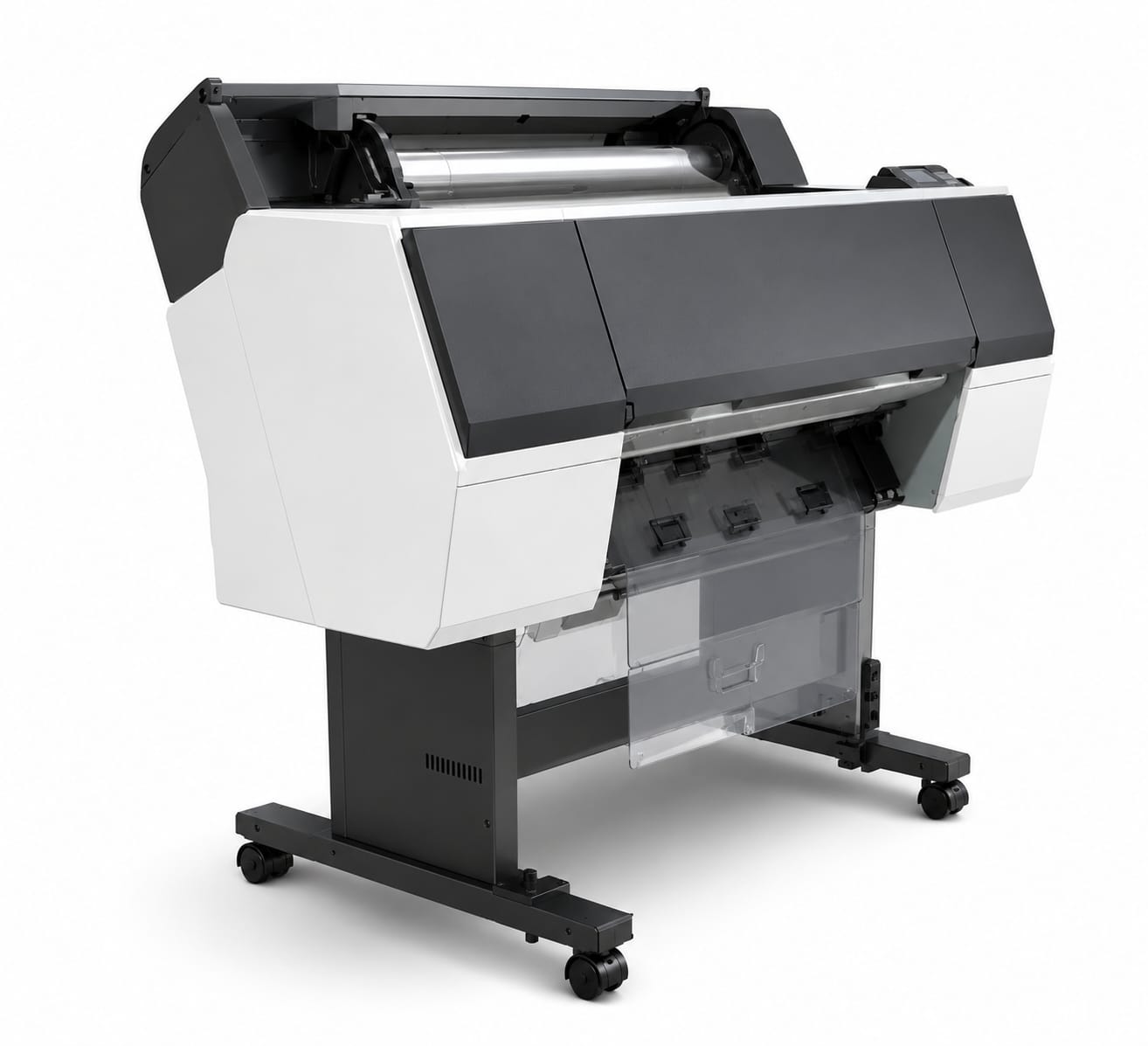

Film Printer

Film Printer

Machine Model Print Resolution Black Density (OD Value) Supported File Formats Printing Speed Printing Width Voltage Specification Applicable Media Rated Power
FL-600 2880dpi ≥ 4.0 PDF/TIFF/EPS 0.5–2m²/hour 610 cm 220V/50HZ Coated PET film negative 1KW
FL-1000 2880dpi ≥ 4.0 PDF/TIFF/EPS/AI/PS 2–4m²/hour 1100 cm 220V/50HZ Coated PET film negative 1.5KW
